Learned Thresholds Token Merging and Pruning for Vision Transformers

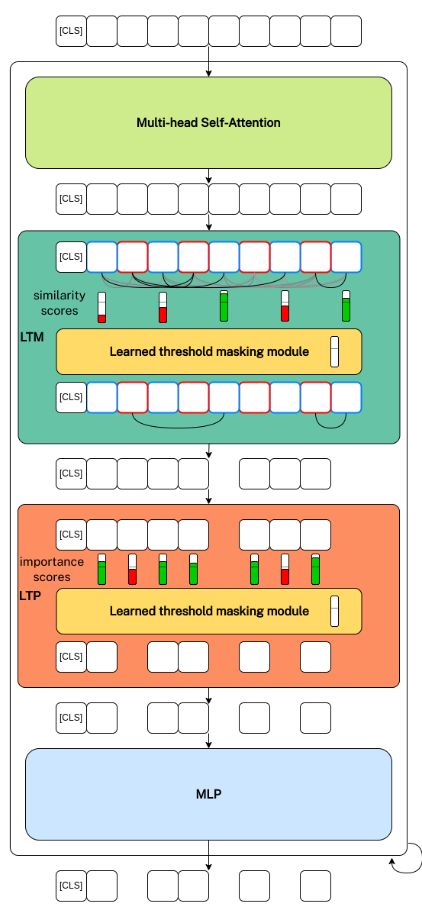

LTMP adds learned threshold masking modules which learn a threshold for both pruning and merging. First token pairs that have a similarity score above the merging threshold are merged and then tokens with a importance score below the pruning threshold are pruned.

LTMP introduces only 2 learnable parameters per transformer block.

$\mathcal{L} = \mathcal{L}_{CE} + \lambda(r_{target} - r_{FLOPs})^2$ with $r_{\text{FLOPs}} \approx{} \sum_{l=1}^L \frac{1}{L}\left(\frac{2\bar{\mathbf{m}}^{l-1}nd^2 + (\bar{\mathbf{m}}^{l-1}n)^2d + 4\bar{\mathbf{m}}^{l}nd^2}{6nd^2 + n^2d}\right)$ where they denote $\phi_{\text{module}}(n,d)$ as a function that calculates the FLOPs of a module based on the number of tokens $n$ and the embedding dimension $d$. $\bar{\mathbf{m}}^l = \frac{1}{n}\sum_{i=1}^n \mathbf{m}^l_i$ is the percentage of input tokens that are kept after the $l$-th threshold masking operation and $\bar{\mathbf{m}}^0 = 1$.

The attention function is modified such that it corresponds to attention as if it was only applied to the tokens that are not merged or pruned. $\operatorname{Attention\_with\_mask}(\mathbf{Q}, \mathbf{K}, \mathbf{V}, \mathbf{m}) = \mathbf{S}\mathbf{V}$ where, $\mathbf{S}_{ij} = \frac{\exp(\mathbf{A}_{ij})\mathbf{m}_{j}}{\sum_{k=1}^N\exp(\mathbf{A}_{ik})\mathbf{m}_{k}}, 1\le i,j,k\le n$ and, $\mathbf{A} = \mathbf{Q}\mathbf{K}^T/\sqrt{d_k} \in \mathbb{R}^{n\times n}$

LTMP uses the mean column attention score $s_i = \frac{1}{h \cdot n}\sum_{j=1}^h \sum_{k=1}^n S_{jki}$ which represents the attention $x_i$ receives.

$M(\mathbf{s}^l_i, \theta^l) = \begin{cases} 1, &\text{if }\mathbf{s}^l_i > \theta^l\\ 0, &\text{otherwise} \end{cases}$ where $\theta$ is the learned threshold. To make the threshold differentiable during backpropagation it is estimated using a straight-through estimator in the backward pass. $M(\mathbf{s}^l_i, \theta^l) = \sigma\left(\frac{\mathbf{s}^l_i - \theta^l}{\tau}\right)$
